MS and CS Pipe Dimension and Weight Chart

Carbon Steel Pipes, Carbon Steel / CS Tubes, Mild Steel Pipes Manufacturer, Mild Steel Pipes, MS Pipe Weight Chart MS Tubes Dimensions

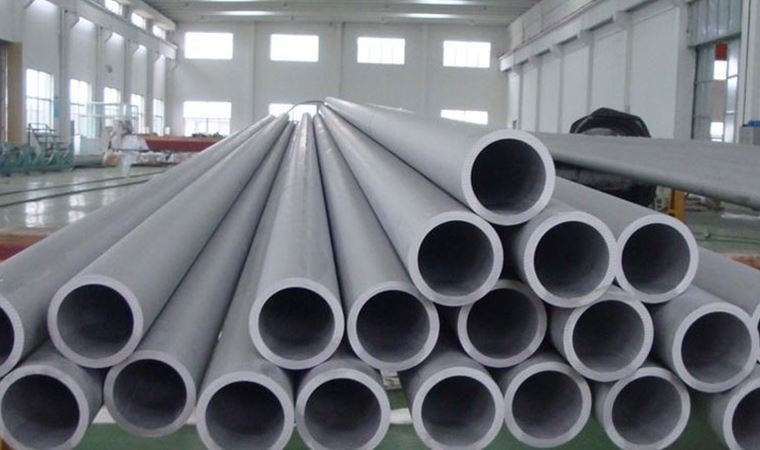

Carbon Steel Pipes and Mild Steel Pipes are widely used for their high corrosion resistance and suitable mechanical properties in industries such as the ship built and boilers, nuclear devices, gas transport and the petrol-chemical industry. Sagar Steel Corporation is one of the leading MS and CS Pipe and Tube Manufacturers in Mumbai, India. We are an ISO 9001:2008 certified company with existence in the Metal Market since 2003.

MS and CS Pipe Dimension and Weight Chart

Hot /Cold Drawn Large Diameter Low Carbon Steel ERW Pipe Manufacturer and Supplier, Copper Nickel Pipe and Nickel Pipe Weight Chart

Sagar Steel Corporation is one of the topmost reliable sources ofStainless Steel Pipes and Tubes. It is manufactured under the strict supervision of professionals in accordance with national and international standards. We manufacture all of our Alloy Steel Pipes and Tubes, Carbon Steel Pipes and Tubes, Super Duplex Pipes and Tubes, Hastelloy Pipes and Tubes, Cupro-Nickel Pipes and Tubes, and 3LPE Coating Seamless Pipes at our units using optimum grade materials and with help of our best state of technology.

Mild Steel Pipes, MS Pipe and Tubes Dimensions Weight Chart

Nominal Bore Outside Diameter Light (A-Class) Thickness Weight Medium (B-Class) Thickness Weight Heavy (C-Class) Thickness Weight
Inch mm Inch mm mm kg/mtr mm kg/mtr mm kg/mtr
1/8″ 3 mm 0.406 10.32 1.80 0.361 2.00   2.65 0.493
1/4″ 6 mm 0.532 13.49 1.80 0.517 2.35 0.407 2.90 0.769
3/8″ 10 mm 0.872 17.10 1.80 0.674 2.35 0.852 2.90 1.02
1/2″ 15 mm 0.844 21.43 2.00 0.952 2.65 1.122 3.25 1.45
3/4″ 20 mm 1.094 27.20 2.35 1.410 2.65 1.580 3.25 1.90
1″ 25 mm 1.312 33.80 2.65 2.010 3.25 2.440 4.05 2.97
1.1/4″ 32 mm 1.656 42.90 2.65 2.580 3.25 3.140 4.05 3.84
1.1/2″ 40 mm 1.906 48.40 2.90 3.250 3.25 3.610 4.05 4.43
2″ 50 mm 2.375 60.30 2.90 4.110 3.65 5.100 4.47 6.17
2.1/2″ 65 mm 3.004 76.20 3.25 5.840 3.65 6.610 4.47 7.90
3″ 80 mm 3.500 88.90 3.25 6.810 4.05 8.470 4.85 10.1
4″ 100 mm 4.500 114.30 3.65 9.890 4.50 12.10 5.40 14.4
5″ 125 mm 5.500 139.70 – – 4.85 16.20 5.40 17.8
6″ 150 mm 6.500 165.10 – – 4.85 19.20 5.40 21.2

Carbon Steel Pipes, Carbon Steel / CS Tubes, Big Diameter Carbon Steel Pipes, MS ERW Pipes Confirming to IS 3589, Grade FE330, Grade FE410

Wall Thickness NominalBore 7″ NB 193.7 mm OD NominalBore 8″ NB 219.1 mm OD NominalBore 10″ NB 273 mm OD NominalBore 12″ NB 323.7 mm OD NominalBore 14″ NB 355.6 mm OD NominalBore 16″ NB 406.4 mm OD NominalBore 18″ NB 457mm OD
mm Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr Kg/mtr
4.85 22.59 25.62 32.07 38.13 – – –
5.20 24.17 27.43 34.34 40.85 – – –
5.60 26.00 29.28 36.93 43.93 48.11 – –
6.00 27.88 31.53 39.50 47.02 51.49 61.00 69.00
6.35 29.34 33.28 41.73 49.67 54.43 62.35 70.50
7.01 32.77 36.76 46.43 55.45 61.82 69.04 –
7.94 – 41.00 50.95 61.85 67.98 77.94 87.80
8.18 – 42.56 53.42 65.12 – – –
9.53 – 51.50 60.24 73.75 81.21 93.13 105.00
12.70 – – – – 107.28 123.30 139.00

MS and CS Pipes and Tubes Specification

Specifications for Pipes and Tubes are mentioned below. If any of the specifications are not mentioned here, please contact us.

  • Specifications: ASTM, ASME, DIN, NFA, JIS
  • Thickness : 4.0mm – 100mm
  • Pipes Size: 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes
  • Tubes Size: 1/2″ OD to 8″ OD
  • Length: Cut length, Fix length, Single Random, Double Random, and Required Length
  • Form: Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
  • End: Plain End, Beveled End, Treaded
  • Type: Seamless

MS/Carbon Steel Pipes and Tubes Material and Grades

Material and Grades for Pipes and Tubes are mentioned below. If any of the Material and Grades are not mentioned here, Kindly get in touch with us

Stainless Steel Seamless Pipes and Tubes : ASTM A312, A790, API 5LC TP-304/L/LN/H/N, TP-316/L/LN/H/N/Ti, TP-317L, TP-317LM, TP-321/H, TP-347/H.
ASTM A213 / A269 / A270 / A632 TP series – 201, 202, 304, 304H, 304L, 304N, 304LN, 309, 310, 310S, 316, 316H, 316L, 316LN, 316Ti, 317, 317L, 321, 321H, 347, 347H, 348, 348H, 904L, XM10, XM11, XM15, XM19, XM29.

Carbon Steel Seamless Pipes and Tubes: ASTM A53, ASTM A106 Gr. A, B, and C API 5L Gr. A / B, X42 ,X52 ,X60, ASTM A 53 Gr. A/B, ASTM A 333 GR.1/6
ASTM A179, ASTM A192 ASTM A179, DIN 17175/2391 BS 3059/ Gr 1 and Gr 2, ASTM A 334 GR.1/8/6

Alloy Steel Seamless Pipes and Tubes : ASTM A530 / A530M ASTM A 335 GR.P- 1, ASTM A 335 GR.P- 5, ASTM A 335 GR.P- 9, ASTM A 335 GR.P-11, ASTM A 335 GR.P-22, ASTM A 335 GR.P-91.
ASTM A 213 T1,T2,T5,T9,T11,T12,T22,T91 DIN 17175 CR.-MO Tubes

Duplex and Super Duplex Steel Seamless Pipes and Tubes : ASTM A240 / ASME SA240 UNS NO. S31803 , S32205 , S32550 , S32750 , S32760.
ASTM A213 UNS series – S31803, S32750, S32760, S24565, S30600, S30815, S31050, S31254, S31725, S31726, S32615, S30615, S33228, S30415, S32654, S35315, NO8367, NO8904

Mild Steel and Carbon Steel Pipes and Tubes Related Types

CS and MS Pipes and Tubes Application and Uses

  • Pipes and Tubes Uses in Textile machinery
  • Pipes and Tubes Uses in the Oil and gas industry
  • Pipes and Tubes Uses in Medical Gas Pipeline Systems
  • Pipes and Tubes Uses in the Pharmaceutical processing industry
  • Pipes and Tubes Use in Fluid piping.
  • Pipes and Tubes Use in Modern architecture.
  • Pipes and Tubes Use in Water waste projects.
