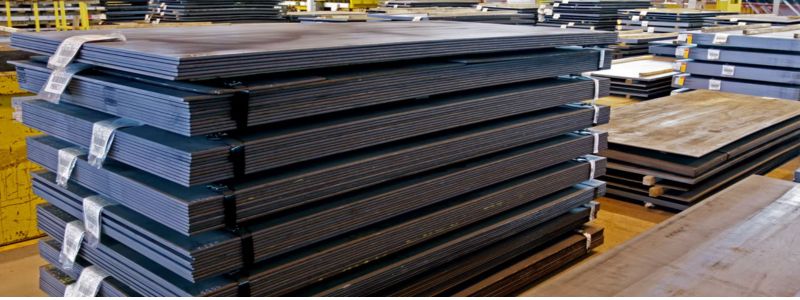

ASTM A517 Grade F Plate Manufacturers, Supplier, and Dealer in India
Sagar Steel Corporation is one of the leading ASTM A517 Grade F Plate Manufacturers in India. We have been an ISO 9001:2008 certified company in the Steel Market since 2003. Our products are designed and developed per international and national quality standards. We offer all our customers the best possible prices for ASTM A517 Grade F Plates, with a stock of standard sizes, thicknesses, and specifications available for immediate delivery worldwide. Our available qualitative range of ASTM A517 Grade F Plates is exclusively designed for high-pressure and high-temperature applications such as pressure vessels and boilers. Sagar Steel Corporation offers quenched and tempered alloy steel plates meeting ASTM A517 Grade F requirements.
ASTM A517 Grade F Plates, Quenched and Tempered Alloy Steel Plates, ASTM A517 Gr.F Plates Manufacturers and Stockholders in India
Sagar Steel Corporation is one of the most reliable sources of ASTM A517 Grade F High Strength Alloy Steel Plates Manufacturers in India. It is manufactured under the strict supervision of professionals per ASTM A517 / ASME SA517 standards. We manufacture our ASTM A517 Grade F plates at our units using optimum grade materials and with the help of our best state of the art technology. We design high-quality plates of various thicknesses and dimensions. Each month we tend to export and import ASTM A517 Grade F plate products to around a hundred countries and to completely different customers. We mainly use very high-quality raw materials to manufacture these plates. We are also the largest Supplier of Round Bars.
ASTM A517 Grade F Plate Specification
Specifications for ASTM A517 Grade F Plates are mentioned below. If any of the specifications are not mentioned here, please contact us.
- Standard: ASTM A517 / ASME SA517
- Grade: Grade F
- Thickness: 6mm – 150mm
- Width: 1000mm – 4500mm
- Length: 3000mm – 18000mm or as required
- Form: Quenched and Tempered Alloy Steel Plates
- Process: Hot Rolled, Quenched, Tempered
ASTM A517 Grade F Plate Material and Grades
The materials and Grades for ASTM A517 Grade F Plates are mentioned below. If any of the Materials or Grades are not mentioned here, please contact us.
ASTM A517 Grade F Quenched & Tempered Alloy Steel Plates:
Chemical Composition: C 0.10-0.20%, Mn 0.60-1.00%, Si 0.15-0.35%, Cr 0.40-0.65%, Mo 0.40-0.60%, V 0.03-0.08%, B 0.001-0.005%, etc.
Mechanical Properties: Yield Strength ≥ 690 MPa (100 ksi), Tensile Strength 795-930 MPa (115-135 ksi), excellent toughness after heat treatment.
About ASTM A517 Grade F Plates
ASTM A517 Grade F Plates are high-strength quenched and tempered alloy steel plates primarily used for pressure vessel applications requiring high strength and toughness. They offer excellent weldability and impact resistance. Sagar Steel Corporation is one of the top ASTM A517 Grade F Plate Manufacturers in India.
Key Properties of ASTM A517 Grade F Plates
These plates provide superior tensile and yield strength combined with good notch toughness after heat treatment. Widely used in boilers, pressure vessels, and structural components under high stress. We are leading ASTM A517 Grade F Plate Suppliers in India.
ASTM A517 Grade F Plate Types
ASTM A517 Grade F Plates Dealers in India
Pressure Vessel Plates in India
ASTM A517 Grade F Plate Dimensions and Properties
ASTM A517 Grade F Plates are supplied in a wide range of thicknesses, widths, and lengths for pressure vessel, heavy engineering, construction, and industrial applications. Custom dimensions and cut-to-size plates are available to meet specific project requirements.
| Property | Specification |
|---|---|
| Grade | ASTM A517 Grade F |
| Standard | ASTM A517 / ASME SA517 |
| Material Type | High Strength Quenched & Tempered Alloy Steel Plate |
| Thickness | 5 mm – 63.5 mm |
| Width | 1500 mm – 3350 mm |
| Length | 1900 mm – 15000 mm |
| Surface Finish | Hot Rolled, Quenched & Tempered |
| Minimum Yield Strength | 690 MPa (100 ksi) |
| Tensile Strength | 760 – 895 MPa (110 – 130 ksi) |
| Elongation | 16% Minimum |
| Density | 7.85 g/cm³ |
| Heat Treatment | Quenched and Tempered |
| Available Forms | Plate, Cut-to-Size Plate |
| Applications | Pressure Vessels, Boilers, Heavy Equipment, Mining Machinery, Structural Fabrication, Industrial Machinery |
ASTM A517 Grade F Plate Related Types
ASTM A517 Grade F Plate Application and Uses
- ASTM A517 Gr.F Plate Uses in Pressure Vessels
- ASTM A517 Gr.F Plate Uses in Boilers
- ASTM A517 Gr.F Plate Uses in Petrochemical Industry
- ASTM A517 Gr.F Plate Uses in Power Plants
- ASTM A517 Gr.F Plate Uses in Storage Tanks
ASTM A517 Grade F Plate Additional Information
- ASTM A517 Grade F Plate Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
- ASTM A517 Grade F Plate Packaging: Plates are packaged with caution and safety so they reach our clients as well as they would expect. Packaging Charges Extra.
- ASTM A517 Grade F Plate Port of Dispatch: Mumbai or Kalamboli ports in the Maharashtra state of India.
- ASTM A517 Grade F Plate Tax:18% GST
Client Project of ASTM A517 Grade F Plate
ASTM A517 Grade F Plate are used in various parts of India. Our company is a name that people trust. Our brand name implies fast delivery, affordable prices, and superior quality of ASTM A517 Grade F Plate. We have supplied ultra high strength plates to various cities and industries in India. Therefore, we are known as one of India’s top-rated ASTM A517 Grade F Plate Suppliers.
| Product supplied | City |
|---|---|
| ASTM A517 Grade F Plate for Heavy Crane Booms | Mumbai, Maharashtra |
| ASTM A517 Grade F Plate for Mining Equipment | Bengaluru, Karnataka |
| ASTM A517 Grade F Plate for Specialized Vehicles | Chennai, Tamil Nadu |
| ASTM A517 Grade F Plate supplied to Construction | Ahmedabad, Gujarat |
ASTM A517 Grade F Plate Suppliers in India:-
Sagar Steel Corporation is a leading Supplier of ASTM A517 Grade F Plate in Mumbai, Pune, Surat, Hyderabad, Ahmedabad, Nagpur, and other major cities in India. We are ASTM A517 Grade F Plate Manufacturers in India. We are India’s leading Stockist of ASTM A517 Grade F Plate. Sagar Steel Corporation supplies products in different cities in India.
| Supplier of ASTM A517 Grade F Plate in top cities of India | |||||
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
ASTM A517 Grade F Plate Exporters in India:–
We, Sagar Steel Corporation, export ASTM A517 Grade F Plate to UAE, European countries, Africa, Asian countries, and all other continents. We have shipments going to various countries every month. With the increasing clientele, we export containers of ASTM A517 Grade F Plate to new locations and ports monthly. We are India’s leading Exporters of ASTM A517 Grade F Plate and have led the market for the past few decades. Our plates are manufactured according to international quality standards. They can be used anywhere worldwide without hesitation or problems as they meet all the required quality criteria.
| Countries We Export ASTM A517 Grade F Plate | |||
|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Bahrain |
| Qatar | UAE | Iran | Netherland |
| Nigeria | Mexico | Canada | Bangladesh |
| United States | South Africa | Malaysia | Brazil |
